HQST 20A 12/24V MPPT Solar Charge Controller for Gel Sealed Flooded and

Choose Your Dr.Prepare LiFePO4 Battery Energy Rated Capacity Max. Continuous Output Power Recommend Charge Current Max. Charge Current Max. Cont Discharge Current Max. Charging Voltage Discharge Cut-off Voltage Low Temp Cut-off Protection Dimensions Weight 12V 100Ah LiFePO4 1,280 Wh 100Ah / 1,280 Wh 1,280 Wh 20A 50A 100A 14.6V Lower than 11.1V Yes L13.07 x H8.66 x W6.77 in 22 lbs/10 kg 12V 100Ah LiFePO4 w/Meter 1,280 Wh 100Ah / 1,280 Wh 1,280 Wh 20A 50A 100A 14.6V Lower than 11.1V Yes L13.07 x H8.66 x W6.77 in 22 lbs/10 kg 12V 100Ah Mini LiFePO4 1,280 Wh 100Ah / 1,280 Wh 1,280 Wh 20A 100A 100A 14.6V Lower than 11.1V Yes L 10 x W 5 x H 7.8 in 22 lbs/10 kg 12V 20Ah LiFePO4 256Wh 20Ah / 256Wh 256Wh 10A 20A 20A 14.6V Lower than 11.1V / L 7 x W 3 x H 6.5 in 5.95 lbs/2.7 kg 12V 8Ah LiFePO4 102.4Wh 8Ah / 102.4Wh 102.4Wh 4A 8A 8A 14.6V Lower than 11.1V / L5.9 x W2.6 x H3.7 in 2.2 lbs/1kg HQST 20 Amp MPPT Solar Charge Controller, Negative Grounded Controller, Bluetooth APP Control, LCD Display, 12V/24V DC Input Solar Panel Regulator for Gel Sealed Flooded and Lithium Battery

HQST MPPT Charge Controller applied Advanced Maximum Power Point Tracking (MPPT) technology to help regulate the power from your solar panel to battery with efficiency no less than 99.5%. . This 20 Amp MPPT solar regulator adopts high quality components with maximum conversion efficiency of 98%. The MPPT battery charging can greatly increase the lifetime of your battery and has various unique functions and quite easy to use features.

 Description

• 【Smart App Control & LCD Display】With a built-in Bluetooth module, you can download the "ChargePro 2.0" (new version) or "PVChargePro" (old version) app for remote monitoring, which stores 300 days of historical data. The LCD screen and LED fault indicators allow you to check device operating data and modify controller parameters. Note: The Android version of the app requires location and Bluetooth to be turned on for connection.

• 【High-Efficiency Charging】The HQST 12V/24V 20A solar charge controller uses advanced MPPT technology to quickly and stably track the maximum power point, with a high tracking efficiency of up to 99% and a peak conversion efficiency of 98%. This maximizes energy from solar panels to charge your system. It auto-detects 12V or 24V DC system voltages, with a maximum load output current of 20A. If the load exceeds 20A (240 watts), overvoltage protection will turn off the output.

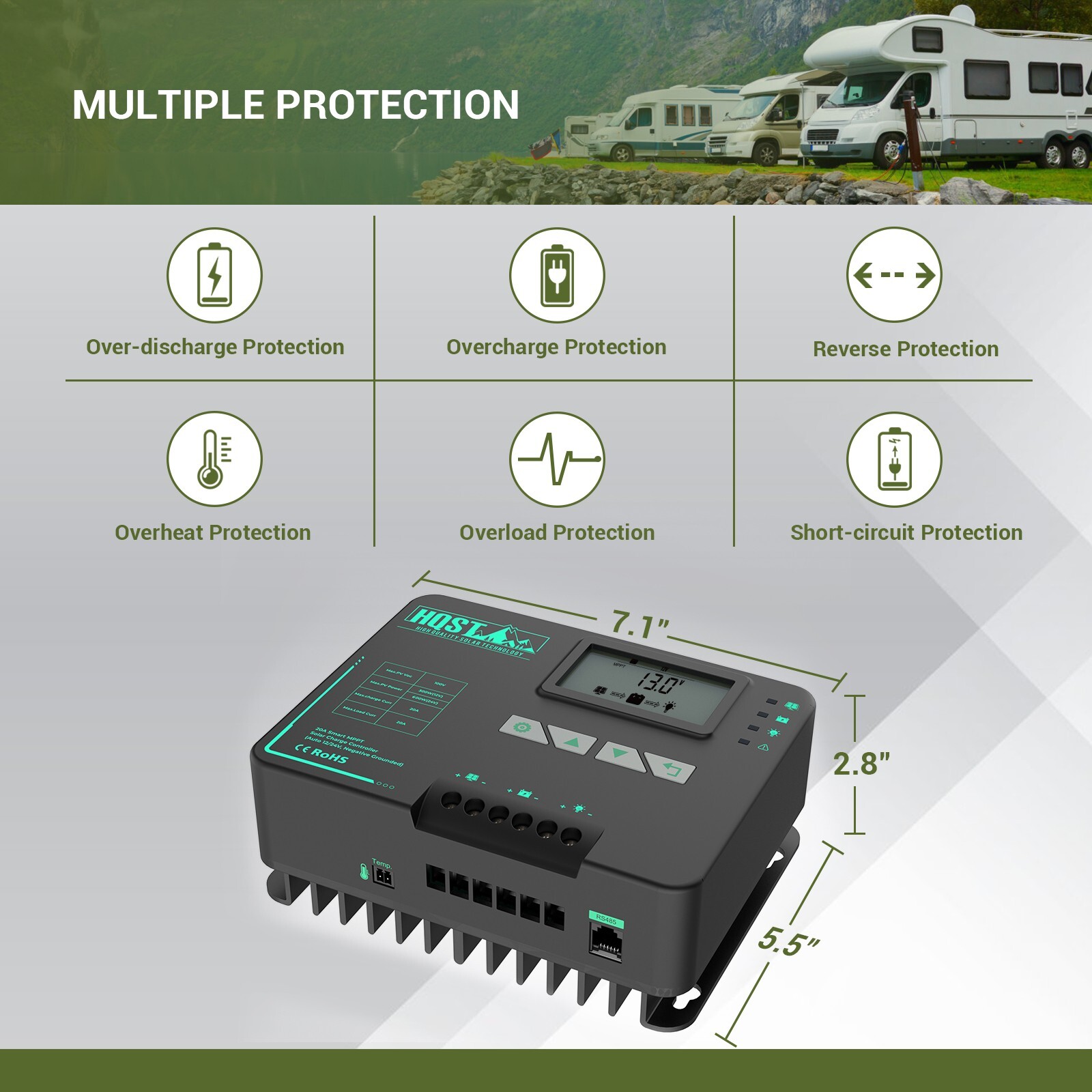

• 【Parallel Charge Function】Two HQST MPPT controllers (M2420N/M2440N/M4860N) can work together to charge the same battery pack using a parallel charge cable (not included), meeting high power charging requirements. Both controllers should be set to the same battery voltage. Our negative-grounded controller provides protection against overcharging, over-discharging, overload, overheating, short circuits, and reverse polarity, maximizing protection against system faults or installation errors.
• 【Compatible with Multiple Battery Types】 This 12V/24V MPPT solar charge controller works with Flooded, AGM, GEL, and Lithium batteries. The user mode enables buyers to set their charging parameters. It can also activate dormant LiFePO4 batteries that shut off due to over-discharging. Features 3-stage charging: boost, float, and equalization.
• 【Higher Heat Dissipation Efficiency & Full-Load Working】The die-cast aluminum heat sink enhances heat dissipation efficiency, minimizing power loss due to heat. The internal gel filling improves PCBA cooling conduction and protects against water and other damages, extending the controller's service life. Equipped with a premium IC and superior PCBA, this controller can operate at full load even in high-temperature environments.


 Key Features Full-Load Working Parallel Wiring Practical PCBA Layout   Specifications

//

HQST 20 Amp MPPT Solar Charge Controller Technical Specifications Battery voltage
12/24V/ Max PV Input Voltage 100V(25℃) Rated Solar Charge Current
20A
Max Solar Input Power
300W/12V; 600W/24V
Self-consumption
12ma (12V); 10ma (24V)
Operating Temperature
-95℉ ~ 113℉
Weight
2.71 lbs
Dimensions
7.1 x 5.5 x 2.8 in Communication PortRS485
Warranty
1-year material warranty
