HQST 20A 40A 60A 80A 100A MPPT Solar Charge Controller
USD $69.99
Condition : New
Free Shipping
{{variant_type_name}} :
Notify me when the price drops
We will email you if we find a lower price on this product!
HQST 20Amp MPPT Solar Charge Controller
- Battery Voltage: 12/24V
- Max PV Input Voltage: 100V (25℃)
- Charge Current: 20A
- Max. PV Input Power: 300W/12V; 600W/24V
- Self-consumption: 12mA/12V; 10mA/24V
- Operating Temperature: -95℉ ~ 113℉
- Weight: 2.71 lbs
- Dimensions: 7.1 x 5.5 x 2.8 in
- Terminals: 10 AWG
- 1-year material warranty
- High Tracking Efficiency: Advanced MPPT technology ensures fast and stable tracking of the maximum power point, with high tracking efficiency of up to 99% and peak conversion efficiency of 98%. It auto-detects 12V or 24V DC system voltages.
- Parallel Charge Function: Two HQST MPPT controllers of the same series can work together to charge the same battery with a parallel charge cable (not included), meeting high power charging requirements. Both controllers should be set to the same battery voltage.
- LCD Screen Display & Remote Monitoring: Equipped with an LCD screen and LED fault indicators, it allows you to check device operating data and status. Built-in Bluetooth module enables remote monitoring via the "ChargePro 2.0" or "PVChargePro" app, storing 300 days of historical data.

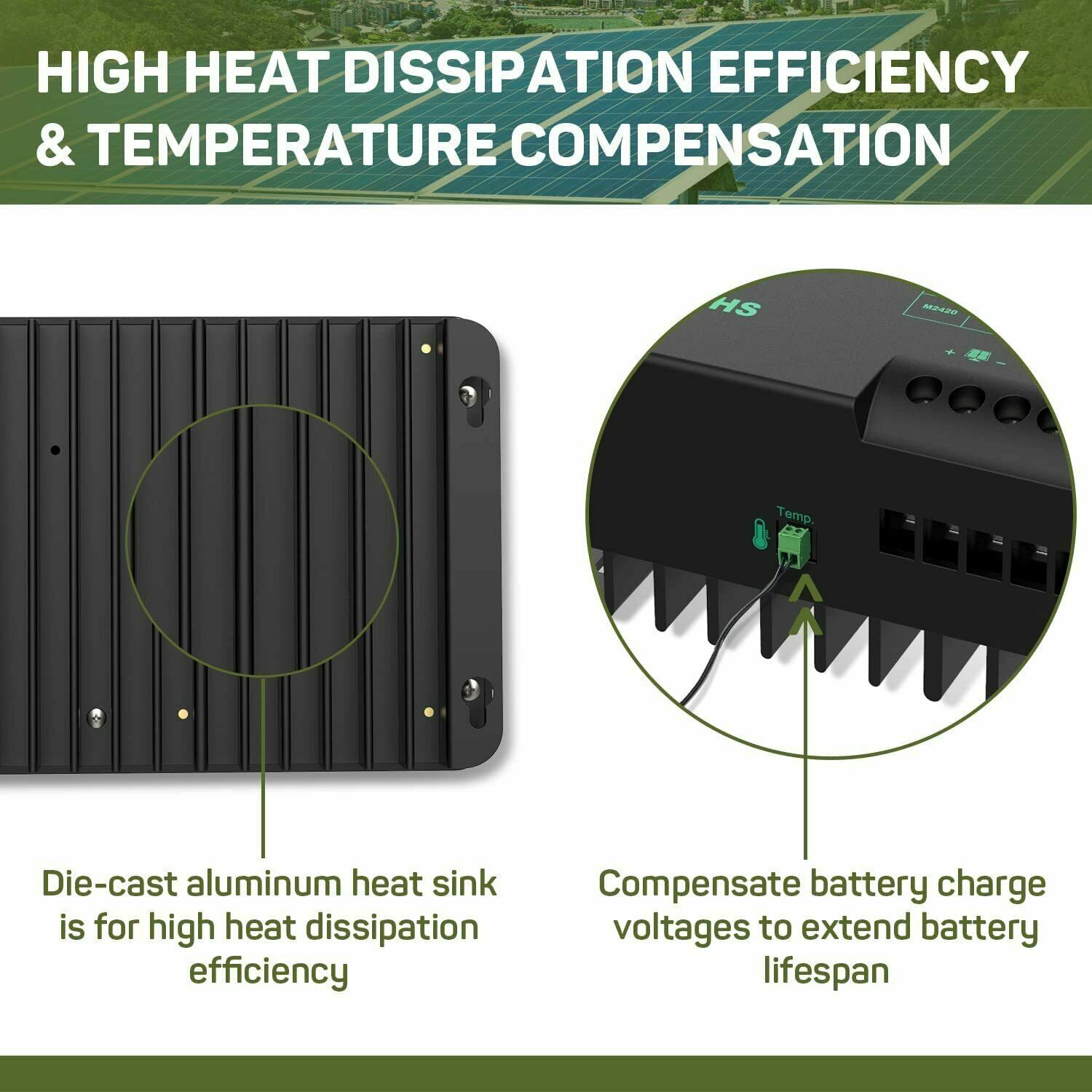

- Higher Heat Dissipation Efficiency & Full-Load Working: Die-cast aluminum heat sink enhances heat dissipation efficiency, minimizing power loss from heat. Internal gel filling improves PCBA cooling conduction and protects against water damage, extending the controller's service life.
- Compatible with Multiple Battery Types: Compatible with Flooded, AGM, Gel, and Lithium batteries. User mode allows custom charging parameters. Features 3-stage charging: boost, float, and equalization.
- Battery Voltage: 12/24V
- Max PV Input Voltage: 100V (25℃)
- Charge Current: 40A
- Max. PV Input Power: 600W/12V; 1200W/24V
- Self-consumption: 12mA/12V; 10mA/24V
- Operating Temperature: -95℉ ~ 113℉
- Weight: 4.8 lbs
- Dimensions: 9.6 x 7.1 x 3.2 in
- Terminals: 7 AWG
- 1-year material warranty
- Low-Temp Cut-Off Protection for LiFePO4: Features low-temp charging (below 32℉) and discharging (below 5℉) cut-off protection for LiFePO4 batteries, preventing damage. Can manually switch this function on and off.
- Smart APP Control & LCD Display: Built-in Bluetooth module allows remote monitoring via the "ChargePro 2.0" or "PVChargePro" app, storing 300 days of historical data. LCD screen and LED fault indicators provide real-time data and fault detection.
- High-Efficiency Charging: Advanced MPPT technology ensures high tracking efficiency (up to 99%) and peak conversion efficiency (98%). Auto-detects 12V or 24V DC system voltages.
- Parallel Charge Function: Two HQST MPPT controllers can work together to charge the same battery pack using a parallel charge cable (not included), meeting high power charging requirements.
- Higher Heat Dissipation Efficiency & Full-Load Working: Die-cast aluminum heat sink enhances heat dissipation, and internal gel filling improves PCBA cooling conduction. Can operate at full load even in high-temperature environments.
- Model: HCC80HTR-FC
- Rated Solar Charge Current: 80A
- Solar (PV) Input Voltage: 150 Voc Max.
- Solar (PV) Input Power: 1200W/12V; 2400W/24V; 3600W/36V; 4800W/48V
- Battery System Voltage: 12V/24V/36V/48V
- Battery Types: Auto-detected: Flooded (FLD), GEL, Sealed, AGM; Manual Setting: Lithium Iron Phosphate (LiFePO4), User-customized
- Tracking Efficiency: 99%
- Peak Conversion Efficiency: 98.7%
- Self-consumption/No-load Loss: 12mA (12V), 10mA (24V), 8mA (36V), 6mA (48V)
- System Wiring Grounding: Negative Grounding
- Operating Temperature: -13°F～113°F (-25℃~45℃)
- Fan-on Temperature: Exceeds 113°F (45℃)
- Storage Temperature: -40°F～176°F (-40℃~80℃)
- Operating Altitude: Below 3000 Meters
- IP Protection: IP32
- Parallel Charging Function: Supports parallel connection, up to 9 units
- Communication Port: RS485 (RJ12)
- Protections: PV over-voltage, PV reverse, PV over-current, Battery over-voltage, Battery over-charge, Battery reverse, Battery over-current, Overheating, High ambient temp protection (149°F/65℃), Low temp cut-off protection for Li batteries
- Wiring Cable: 4 AWG (Recommended)
- Product Weight: 5.7 lbs (2.6 kg)
- Product Dimensions: 7.9 x 3.7 x 10 in / 200 x 260 x 93 mm (L x W x H)
- Package Weight: 6.6 lbs (3 kg)
- Package Dimensions: 12.12 x 10.07 x 5.55 in / 308 x 256 x 141 mm
- 1-year material warranty
- Bluetooth APP Control & LCD Display: Built-in Bluetooth module allows remote monitoring via the "ChargePro 2.0" or "PVChargePro" app, storing 300 days of historical data. LCD screen and buttons provide real-time data and parameter adjustments.
- Low-Temp Cut-Off Protection for LiFePO4: Features low-temp charging (below 32℉) and discharging (below 5℉) cut-off protection for LiFePO4 batteries, preventing damage. Can manually switch this function on and off.
- Improved High-Efficiency Charging: Advanced MPPT technology achieves high tracking efficiency (up to 99%) and peak conversion efficiency (98.7%), maximizing energy from solar panels.
- Parallel Charge Extension Function: Supports parallel connection of up to 9 units to increase charging current for a single battery bank system, without reinstalling the entire solar panel system.
- Active Cooling Fan System & Comprehensive Safety Protection: Two built-in fans ensure efficient cooling at high power or temperatures above 113℉. Offers 10 protections against overcharging, over-voltage, over-current, overheating, and reverse polarity.
